Variable Refrigerant Flow (VRF) Multi System Air-conditioners

Variable Refrigerant Flow (VRF) Multi System Air-conditioners

Features

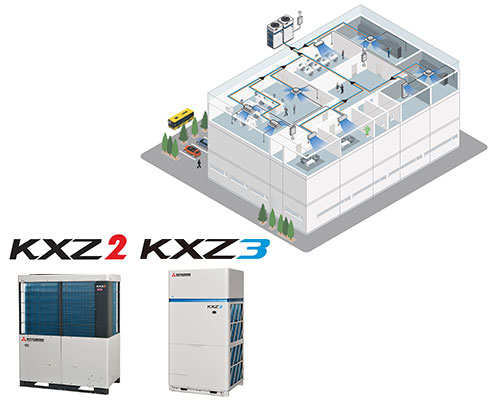

VRF Heat pump systems

The heat pump systems operate with 2 inter-connecting pipes, and are commonly referred to as a '2-pipe system'.
These systems provide either a heating or cooling operation to all indoor units at the same time and are suitable for a wide range of applications from an apartment or villa to an entire multi-story building.
The range starts with 4HP cooling capacity, and up to 20HP with cooling capacity.
Outdoor units can also be “twinned” or “tripled” providing up to 60HP on a single system.

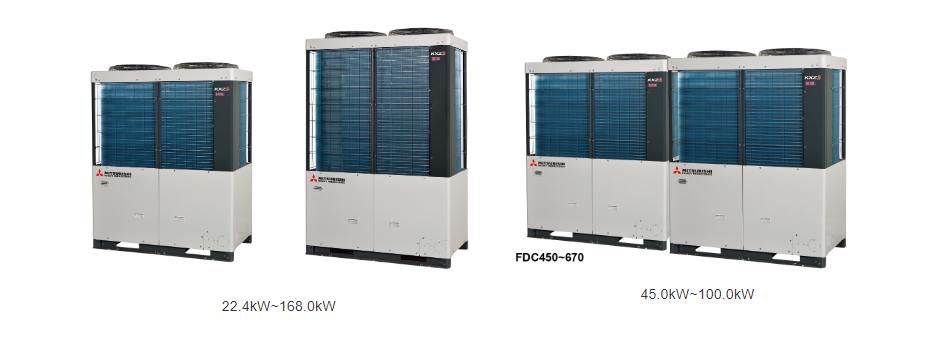

Outdoor Units

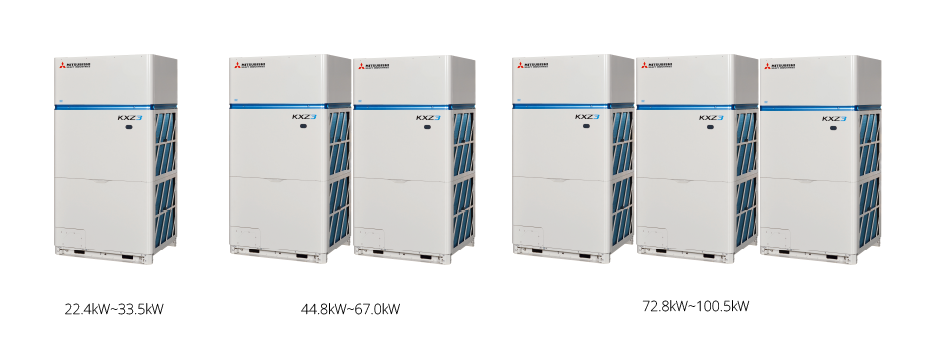

The KXZ2 series provides flexibility in design and ease of installation for medium and large buildings.

The heat recovery systems operates with 3 inter-connecting pipes, thus commonly referred to as a '3-pipe system'.
The systems provide both heating and cooling operations to individual indoor units according to the room conditions/requirements.

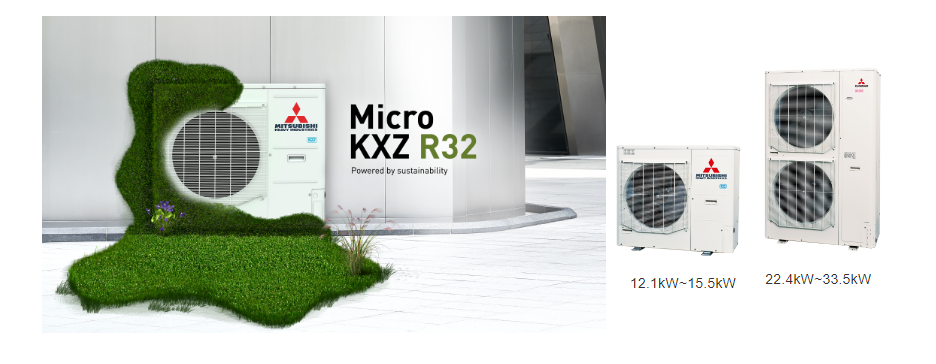

Micro KXZ series provides heating and cooling solutions for small offices, retail as well as compact residential buildings.

Indoor Units

The best solution of indoor units for all applications is available from our full lineup.

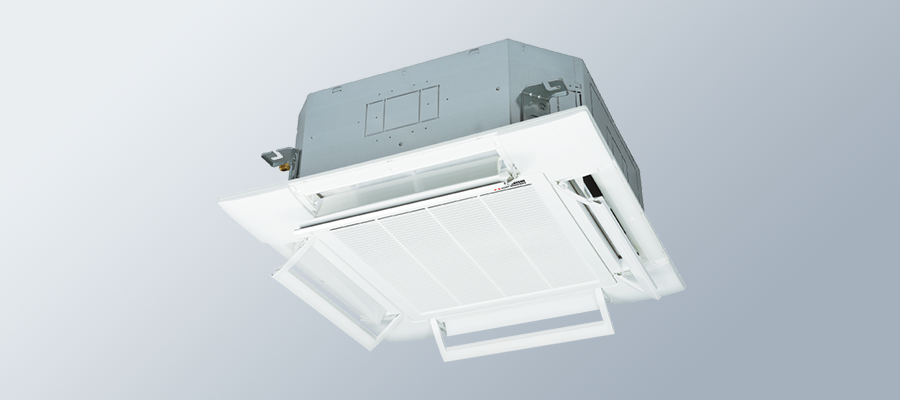

  • FDT Series(Ceiling Cassette 4 way)
    FDT Series(Ceiling Cassette 4 way)

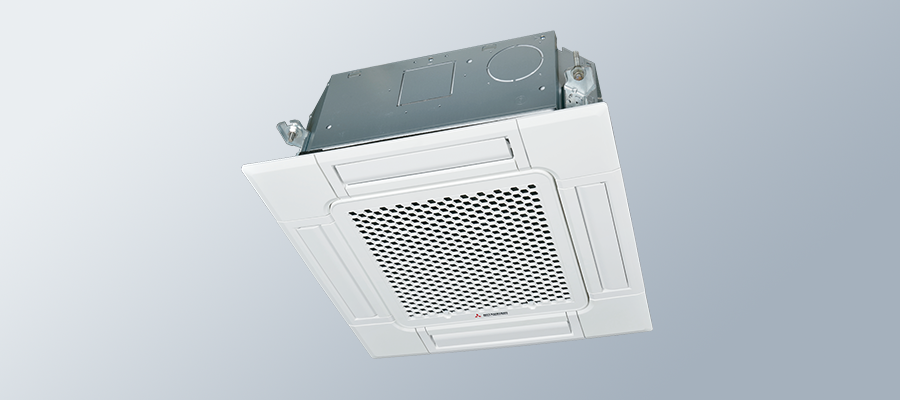

  • FDTC Series(Ceiling Cassette 4 way compact)
    FDTC Series(Ceiling Cassette 4 way compact)

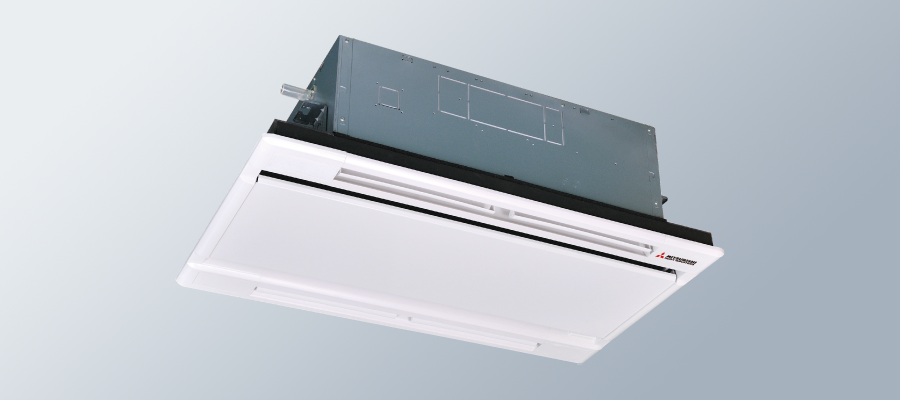

  • FDTW Series(Ceiling Cassette 2 way)
    FDTW Series(Ceiling Cassette 2 way)

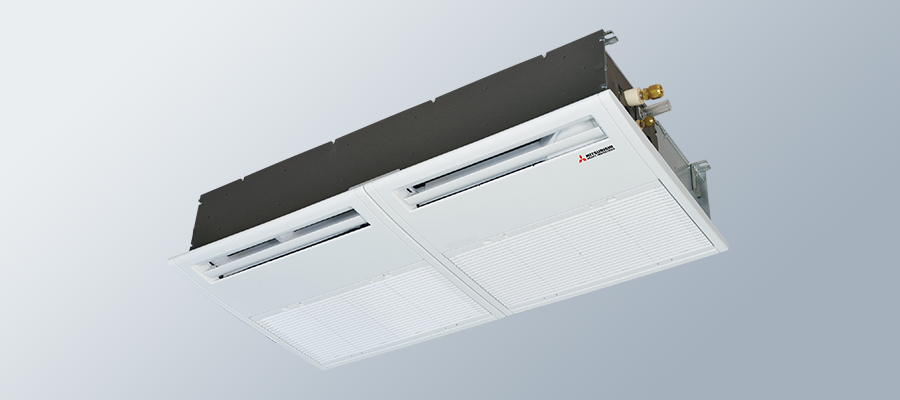

  • FDTS (Ceiling Cassette 1 way)
    FDTS (Ceiling Cassette 1 way)

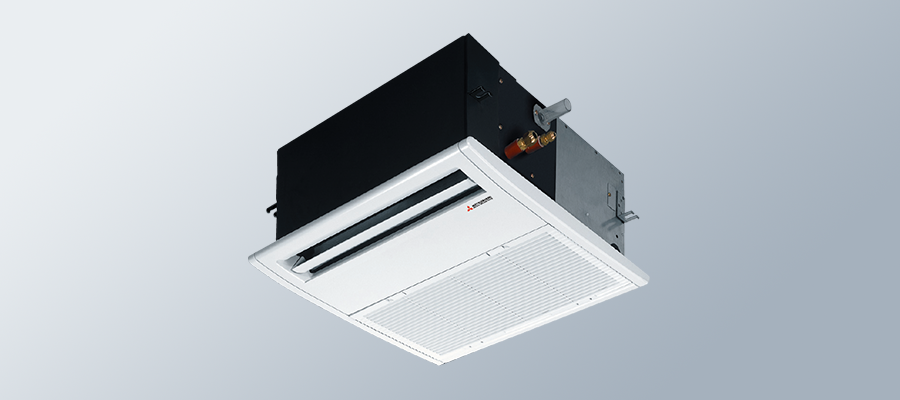

  • FDTQ Series(Ceiling Cassette 1 way compact)
    FDTQ Series(Ceiling Cassette 1 way compact)

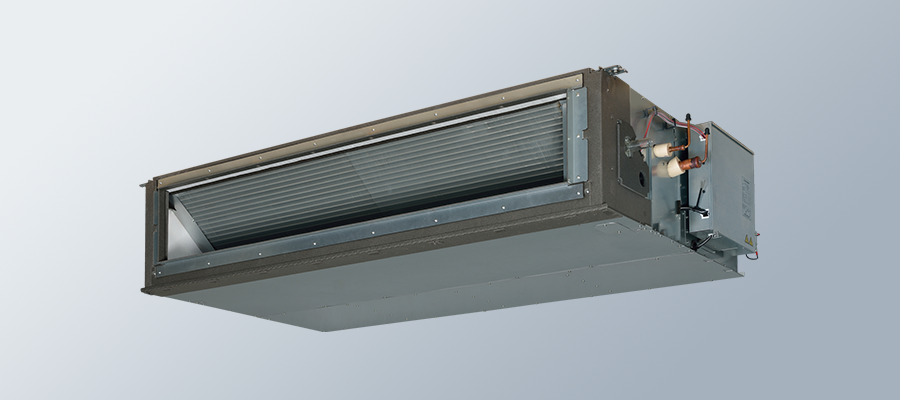

  • FDU Series(Duct Connected High static pressure)
    FDU Series(Duct Connected High static pressure)

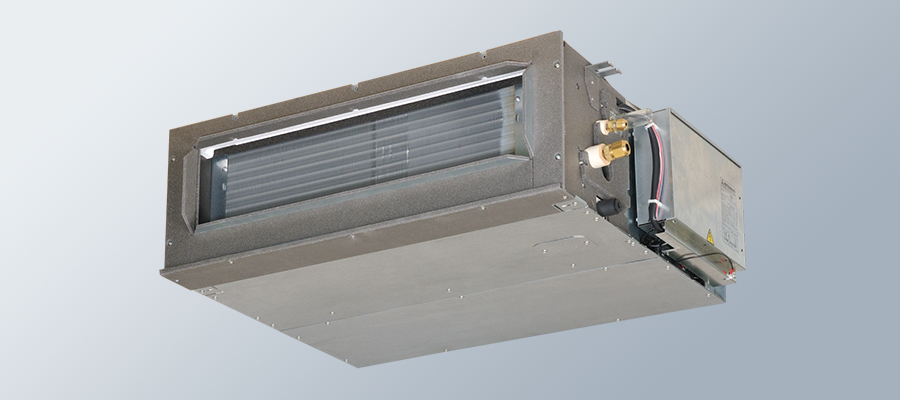

  • FDUM Series(Duct Connected Low/Middle static pressure)
    FDUM Series(Duct Connected Low/Middle static pressure)

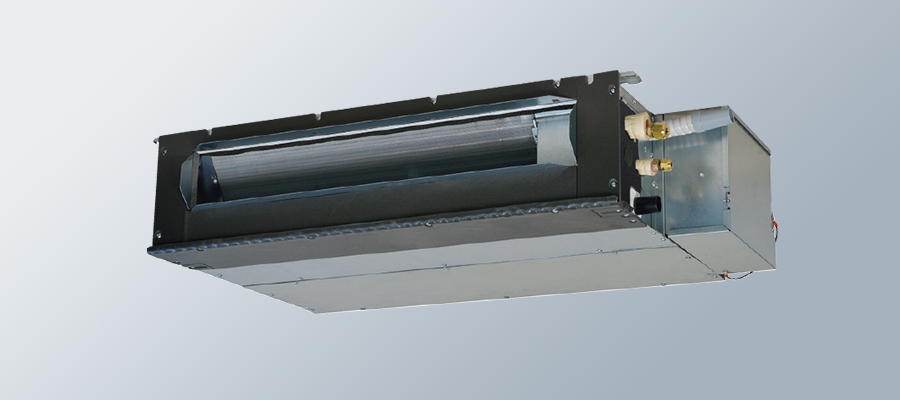

  • FDUT Series(Duct Connected Low Static Pressure (thin))
    FDUT Series(Duct Connected Low Static Pressure (thin))

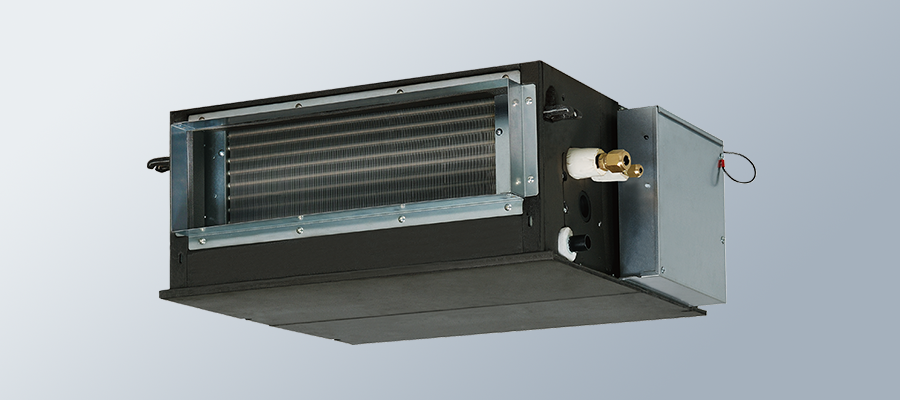

  • FDUH Series(Duct Connected Compact & Flexible)
    FDUH Series(Duct Connected Compact & Flexible)

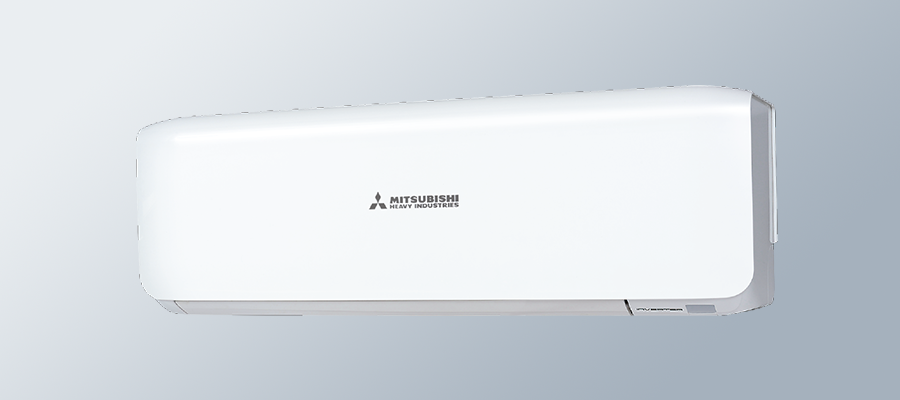

  • FDK Series(Wall Mounted)
    FDK Series(Wall Mounted)

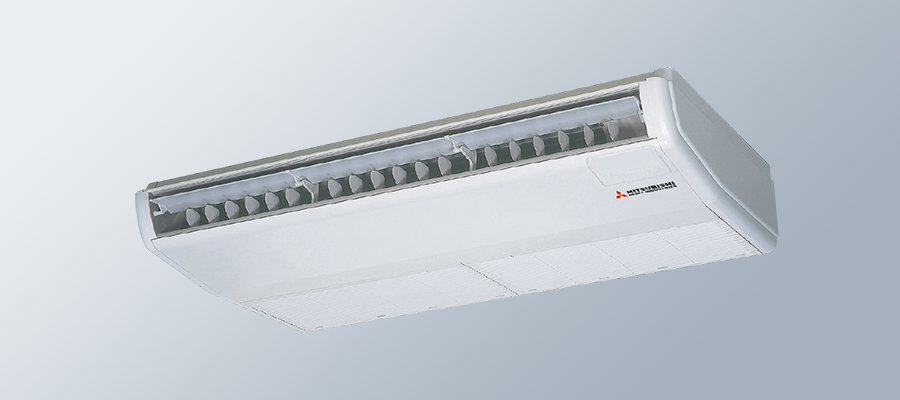

  • FDE Series(Ceiling Suspended)
    FDE Series(Ceiling Suspended)

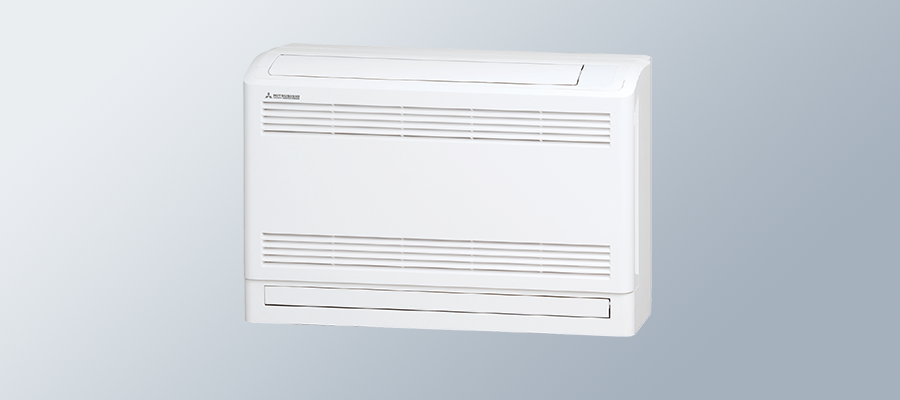

  • FDFW Series(Floor Standing)
    FDFW Series(Floor Standing)

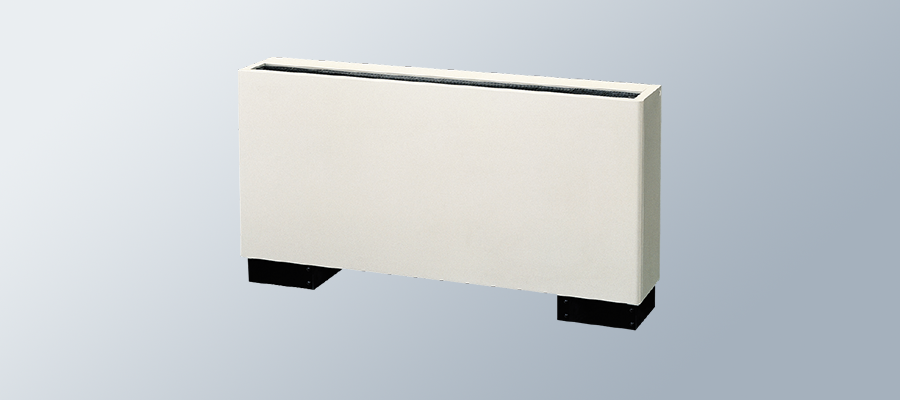

  • FDFL Series(Floor Standing with casing)
    FDFL Series(Floor Standing with casing)

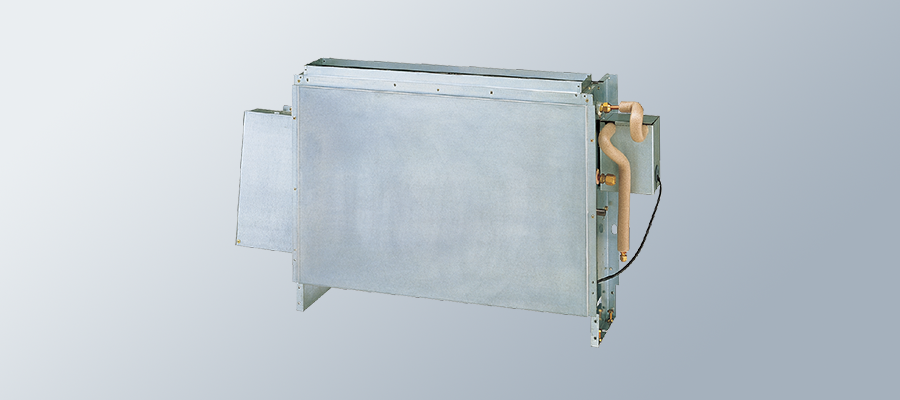

  • FDFU Series(Floor Standing without casing)
    FDFU Series(Floor Standing without casing)
  • FDU-F Series(Outdoor Air Processing unit)
    FDU-F Series(Outdoor Air Processing unit)
